Catalytic Converters Explained: What They Are and Why They Matter

Breathe easy. The small metal can under your car is doing big work you can’t see.

The Simple Answer First

A catalytic converter is a device in your car’s exhaust system that uses precious metal catalysts to transform harmful gases from the engine into less harmful emissions before they leave the tailpipe. In gasoline vehicles, it typically tackles three pollutants at once—carbon monoxide (CO), unburned hydrocarbons (HC), and nitrogen oxides (NOx). That’s why you’ll often hear it called a “three-way catalyst.”

It’s not an accessory. It’s a core part of modern engines meeting emissions laws and keeping urban air breathable.

Where It Lives and What It Looks Like

If you crawl under most modern cars, you’ll find the catalytic converter mounted in the exhaust stream between the engine and the muffler. Many newer designs place it closer to the engine (a “close-coupled” location) to heat up faster, because catalysts only get truly effective once they reach a “light-off” temperature, typically a few hundred degrees Celsius.

On the outside, it looks like a metal can. Inside is where the magic happens: a ceramic or metallic honeycomb (the substrate) coated with a “washcoat” and then with precious metals. The honeycomb creates a massive surface area for reactions while keeping exhaust flow relatively free.

What It’s Fighting: The Three Bad Actors

Carbon monoxide (CO): A colorless, odorless gas that binds to hemoglobin more readily than oxygen. Even small amounts can be dangerous.
Hydrocarbons (HC): Unburned or partially burned fuel. They contribute to smog and can irritate lungs.
Nitrogen oxides (NOx): Formed when nitrogen and oxygen react under high combustion temperatures. A major trigger for smog and respiratory problems.

The catalytic converter’s job is to convert CO and HC into carbon dioxide (CO2) and water (H2O), and reduce NOx to nitrogen (N2). It doesn’t eliminate CO2—no exhaust aftertreatment for gasoline engines does—but it cuts the immediate, local toxins dramatically.

How the Chemistry Works (Without a Lab Coat)

Think of three functions layered together:

Oxidation of CO and HC

Catalysts like platinum and palladium help CO (a partially oxidized gas) grab oxygen and become CO2.
Hydrocarbons break down and oxidize to CO2 and H2O.
This requires oxygen in the exhaust.

Reduction of NOx

Rhodium (and sometimes other metals) helps split NOx into nitrogen and oxygen.
This reaction works best in oxygen-lean conditions.

Oxygen storage and release

Since oxidation likes oxygen and reduction dislikes it, the converter relies on a clever balancing act. The washcoat often contains cerium oxide (ceria), which can absorb oxygen when there’s a little extra and release it when there’s not enough.
The engine’s control system cycles around the ideal air-fuel ratio (stoichiometric, about 14.7:1 for gasoline) using feedback from oxygen sensors. That gentle swing keeps the converter fed with just enough of what each reaction needs.

When it all lines up, efficiency is astonishing. Properly working three-way catalysts can reduce CO, HC, and NOx by well over 90 percent.

Key Components Inside

Substrate: Usually ceramic (cordierite) or metal foil formed into a honeycomb. It’s porous, lightweight, and provides huge internal surface area.
Washcoat: A rough, high-surface-area layer (often alumina) that holds active materials.
Precious metals: Platinum, palladium, and rhodium are the heroes; they foster reactions without getting consumed quickly.
Oxygen storage materials: Mainly ceria, sometimes with zirconia, to buffer oxygen and smooth out the engine’s air-fuel fluctuations.

The casing is stainless steel to withstand heat and corrosion. Expansion joints and shields help manage thermal stress.

Light-Off and Why Short Trips Are Hard on Air

Catalysts need heat. The moment a cold engine fires up, emissions are relatively high until the converter reaches light-off temperature. This is why:

Many cars place a “warm-up” catalyst close to the exhaust manifold.
Cold-weather strategies, like slightly richer fuel mixtures, help warm the system quickly (at a small fuel penalty).
Short, stop-start trips can be tougher on air quality because the converter may not stay hot for long.

If you commute in brief hops, your converter spends more time below peak efficiency. That’s not your fault—but it’s a good reason to keep the rest of your engine tuned so it lights off as fast as possible.

Gasoline vs. Diesel: Different Battles

Diesel exhaust is lean (oxygen-rich) most of the time, which changes the playbook:

Diesel oxidation catalyst (DOC) oxidizes CO and HC, and helps oxidize NO to NO2 for downstream systems.
Diesel particulate filter (DPF) traps soot and periodically burns it off (regeneration).
Selective catalytic reduction (SCR) reduces NOx using a urea-based fluid (DEF). The injected ammonia reacts on the SCR catalyst to convert NOx to nitrogen and water.

So while the word “catalytic converter” gets used broadly, diesel vehicles typically use a suite of aftertreatment devices rather than a single three-way unit.

Why It Matters: Health, Law, and Performance

Public health: Catalytic converters are one of the quiet success stories of urban health. They’ve helped reduce smog-forming emissions massively since the 1970s, cutting hospital visits associated with bad air days.
Legal compliance: In most regions, it’s illegal to remove, bypass, or tamper with emission controls. Failing or missing converters can cause state or provincial inspections to fail.
Driveability: A healthy converter supports clean combustion control. Without it, engines may be calibrated conservatively, and onboard monitors can trigger power-reduction strategies when faults are detected.

Note that a converter doesn’t add power; it’s there to clean. On modern cars, removing it often makes things run worse because the engine management expects it to be there, and the rest of the system is tuned as a whole.

Common Failure Modes (and How They Happen)

Thermal aging: Thousands of heat cycles cause the washcoat to sinter, reducing surface area and catalytic activity. It’s a slow fade.
Overheating/melting: Misfires or a rich mixture can dump raw fuel into the converter, where it burns and overheats the substrate, sometimes melting passages.
Poisoning: Leaded fuel (rare now), phosphorus and zinc from oil additives, silicone from sealants, and sulfur can coat active sites and deactivate them.
Physical damage: Road impacts, rough handling, or internal breaking due to vibration or thermal shock.
Clogging: Broken substrate pieces can block flow; oil burning or coolant leaks can cause ash build-up.

Many “bad converter” diagnoses trace back to an upstream cause: misfires, leaky injectors, a failing oxygen sensor, a weak ignition coil, or a vacuum leak. Fix the cause first, or new parts will fail again.

Symptoms You Might Notice

Check Engine Light with codes like P0420/P0430 (catalyst efficiency below threshold).
Sulfur/rotten egg smell when the catalyst can’t handle sulfur compounds.
Sluggish acceleration if the substrate collapses and restricts flow.
Excessive heat in the converter area after a misfire event.
Rattling from the converter if the brick inside breaks loose.

If you see catalyst-related codes, pull freeze-frame data and look for companion misfire or fuel-trim codes. A good shop will verify with scan data, oxygen sensor waveforms, and sometimes an exhaust backpressure test before condemning the converter.

The Theft Problem and What to Do

Because catalytic converters contain precious metals, theft has been a real problem. Thieves can cut one out in minutes, leaving a loud, open exhaust and a big repair bill behind. Preventive steps:

Park in well-lit areas or garages when possible.
Consider a bolt-on shield or cage for high-risk vehicles.
Etch your VIN and apply high-temp paint to make it harder to resell.
Keep insurance current; comprehensive coverage often applies.

If yours is stolen, resist the urge to drive it far. Exhaust gases can leak into the cabin, and nearby components can overheat without proper routing.

How OBD Keeps Watch

Onboard diagnostics (OBD-II) uses two oxygen sensors per bank in most gasoline cars: one before the converter and one after. The upstream sensor helps control fuel; the downstream sensor monitors catalyst performance. If the downstream sensor’s signal starts to mimic the upstream sensor too closely, the ECM reads that as a tired converter and sets a code.

An important catch: a lazy upstream sensor or exhaust leak can also make the downstream trace look “too busy,” tricking the system into blaming the converter. This is why parts swapping without testing is expensive.

Replacement: OEM vs. Aftermarket

Replacing a catalytic converter isn’t like swapping a muffler. Important considerations:

Legal compliance: Many regions require converters that meet specific certifications (like CARB in California). Using a non-approved unit can fail inspection, even if the car runs fine.
Fit and placement: Converters must sit where the manufacturer intended to reach light-off quickly and to satisfy OBD monitoring.
Material loading: Cheaper converters can have less catalyst, which might work at first but fail monitoring under real-world conditions.
Warranty: Emissions components often carry extended warranties. Check before you pay out of pocket.

It’s also crucial to fix the root cause of failure first—ignition, fueling, or leaks—before installing a new converter.

Maintenance Habits That Protect Your Converter

Fix misfires immediately: Unburned fuel is the catalyst’s enemy.
Address oil consumption: Excess oil ash can poison or clog the substrate; valve seals and PCV issues matter here.
Use the correct engine oil: Modern low-ash oils protect aftertreatment better.
Watch for coolant leaks: A failed head gasket or cracked EGR cooler can damage catalysts and sensors.
Keep sensors healthy: A worn oxygen sensor can skew mixture control, overheating the converter or letting it run too cool.

Good news: you don’t “service” the converter itself. You care for it by keeping the engine in tune.

Myths Worth Clearing Up

“Removing the cat adds big horsepower.” On a modern, stock-tuned gasoline car, not really. Restrictions are minimal when everything’s healthy. Gains, if any, usually come from retuning, and tampering with emissions equipment is illegal on public roads.
“A fuel additive will restore a dead converter.” Once a converter is melted or poisoned, no bottle fixes the chemistry or geometry. Additives that clean injectors or intake valves can help upstream issues, but they won’t rebuild a damaged catalyst.
“High-octane fuel keeps the cat clean.” Octane only affects knock resistance. Use the grade specified in your owner’s manual; higher octane doesn’t equal cleaner.

The Engineering Balancing Act

Automakers juggle three goals: performance, fuel economy, and emissions. The catalytic converter sits at the center of that triangle along with engine calibration. Highlights of that balancing act:

Stoichiometric control: Hovering around 14.7:1 air-fuel lets the three-way catalyst do both oxidation and reduction efficiently.
Lambda oscillation: The ECM intentionally nudges the mixture slightly rich and lean, giving the converter the alternating oxygen conditions it needs.
Thermal management: Hardware and software strategies warm the converter quickly, then protect it from excessive heat.

Even the shape of the inlet and outlet cones around the substrate is tuned to avoid flow separation and hotspots. It’s not just a can; it’s a carefully engineered chemical reactor.

History in Brief

The first widespread catalytic converters arrived in North American cars in the mid-1970s, paired with unleaded gasoline. Earlier systems used air pumps to help oxidize HC and CO but didn’t tackle NOx well. As closed-loop fuel control matured—spearheaded by oxygen sensors—and three-way catalysts took over, emissions dropped dramatically without making cars undrivable.

Today’s systems are far more durable, quick to light off, and robust against real-world fuels than the early versions.

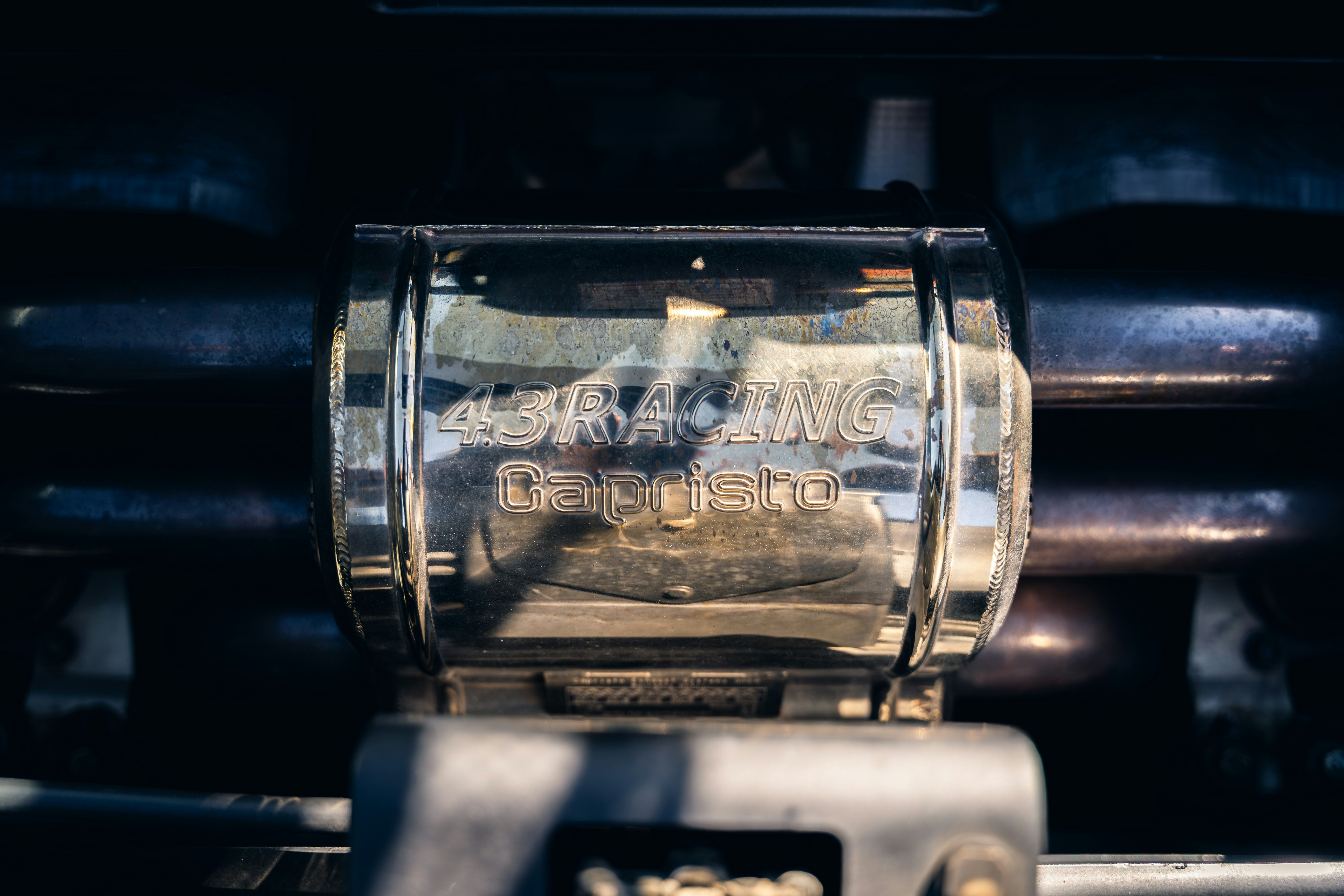

_{Photo by Tiago Ferreira on Unsplash}

Electric and Hybrid Context

Hybrids: The engine shuts off frequently, which cools the exhaust. Engineers place catalysts close to the engine and may use heat-retaining shields or clever calibration to maintain readiness.
Plug-in hybrids: On short trips, the engine may run rarely. When it does, it must warm the catalyst quickly to meet standards from the first seconds of operation.
EVs: Pure electric vehicles don’t have catalytic converters at all, because there’s no tailpipe. As EVs grow, theft risk may shift to the remaining ICE vehicles, keeping replacement costs elevated for a while.

Recycling and the Precious Metals Loop

Spent catalytic converters are valuable for recycling. Specialized facilities extract platinum, palladium, and rhodium, which offsets the need for new mining. If you’re replacing a converter, ask the shop about core charges and proper recycling. Don’t toss it in a bin—there’s money and environmental value in the old unit.

When You’re Shopping Used

Buying a used car? A quick exhaust inspection is worth the time:

Check for fresh welds or odd pipe sections that suggest a cut-out and reattachment.
Verify that O2 sensor wiring isn’t spliced in suspicious ways.
Ensure the converter has the correct labeling for your region (especially in CARB states).

A test drive with a scan tool can show if the downstream O2 sensor behaves as expected for a healthy catalyst.

Track Cars and Special Cases

Racing or track-only builds often remove or relocate catalysts as allowed by their rulebooks. That world plays by different rules, but for street use, the law is consistent: keep emissions controls intact. If you occasionally take a street car to the track, use parts that remain emissions compliant and heat-resistant, and monitor temperatures.

What It Costs—and Why

Catalytic converters span a wide price range. Factors include:

Precious metal content and current commodity prices.
Whether it’s part of a larger “manifold cat” assembly.
Certification level (federal vs. CARB).
Labor time due to rusted fasteners or tight packaging.

It’s often more cost-effective to fix a causing misfire or sensor issue early than to run rich and cook an expensive catalyst.

Practical Tips You Can Use Today

Don’t ignore a flashing Check Engine Light; that often means a misfire severe enough to damage the converter.
Listen for rattles from the exhaust area after bumps or over startup—could be a cracked substrate.
If your car smells like rotten eggs, get it checked. That’s often sulfur compounds not being processed correctly.
Keep up with spark plugs, coils, and fuel filter changes per the maintenance schedule.
Use the right fuel and oil for your car—no more, no less.

The Bottom Line

A catalytic converter is small, quiet, and mostly invisible. Yet it’s one of the main reasons modern cities can host millions of cars without the choking haze that once hovered over them. Chemically, it’s a sophisticated reactor, turning a chaotic stream of exhaust into something far less harmful, hundreds of times a minute, for years on end.

When it’s healthy, you barely know it’s there. When it’s not, you’ll smell it, hear it, or see a glowing dash light. Treat it like the critical safety system it is: keep the engine tuned, fix faults quickly, and use parts that meet the right standard for your car and your local laws. Your lungs—and everyone else’s—benefit every time you start the engine.
